US Motors / Nidec

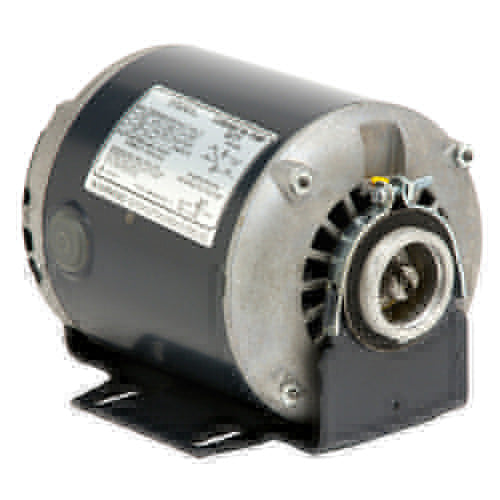

6001 US Motors / Nidec Carbonator Pump Motor - 1/4 HP - 1725 RPM - 100-120/200-240 V - ODP
6001 US Motors / Nidec Carbonator Pump Motor - 1/4 HP - 1725 RPM - 100-120/200-240 V - ODP
Regular price
$265.95 USD
Regular price
Sale price
$265.95 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
6001 is a new-in-box Carbonator Pump Motor from US Motors / Nidec. Designed for carbonator, beverage, and small commercial pump service.
Specifications
| Horsepower | 1/4 HP |
|---|---|
| Nominal RPM | 1800 RPM |
| Rated RPM | 1725 RPM |
| Voltage | 100-120/200-240 V |
| Phase | Single Phase |
| Frequency | 50/60 Hz |
| Electrical Type | Split Phase |
| Full-Load Amps | See manufacturer operating notes |
| Service Factor | 1 |
| Overload Protection | Automatic reset |
| Duty Rating | Not available from manufacturer |
| Ambient Rating | 40 °C |
| Insulation Class | B |
| Efficiency | Not available from manufacturer |
| Hazardous Location Rating | Not applicable |
| Speed Count | 1 |
| Frame | 48 |
| Enclosure | ODP |
| Mounting | Resilient base |
| Shaft Details | Manufacturer shaft code Y |
| Rotation | Reversible |
| Bearings | SAB / sleeve bearings |
| Material | Rolled Steel |
| Motor Diameter | 5.6 in |
| Length | 13 in |
| Width | 12 in |
| Height | 11 in |
| Ship Weight | 15 lb |
| Country of Origin | MEX |
