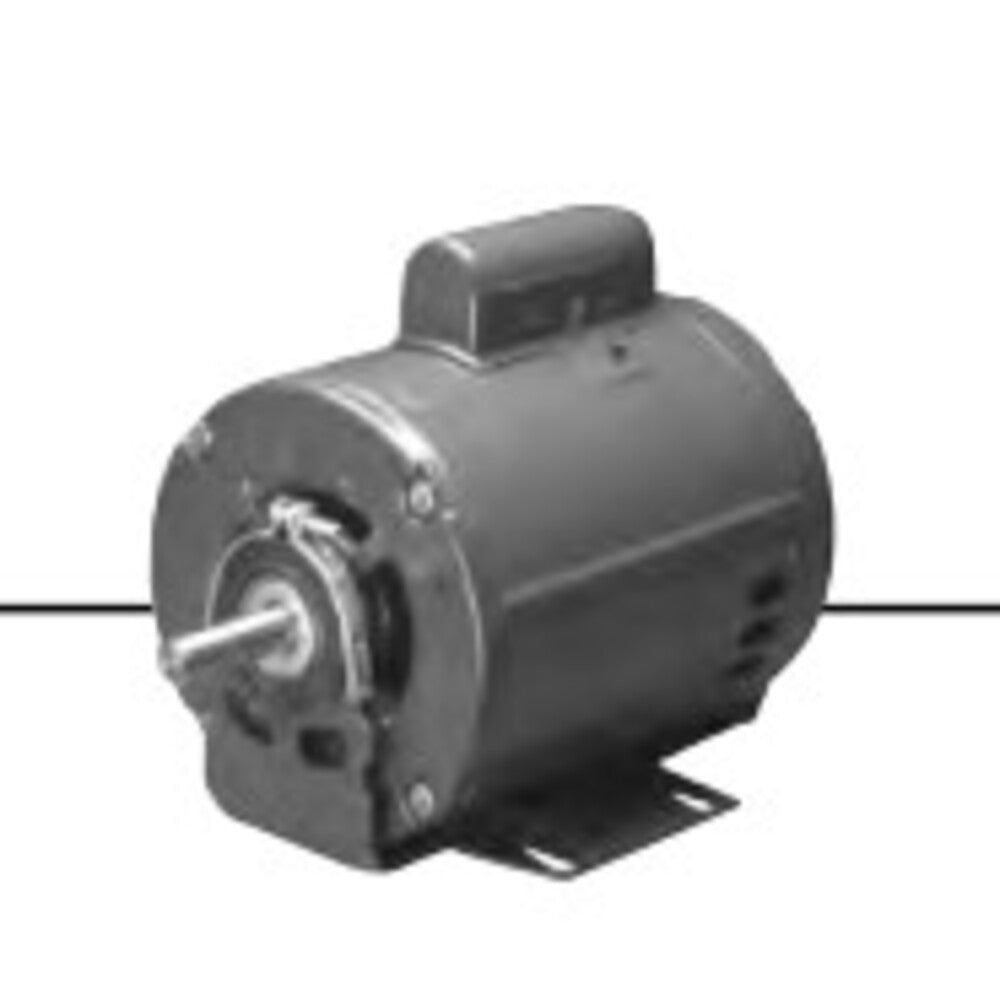

• 4242 US Motors / Nidec Fan & Blower Motor - 1 1/2 HP - 1725 RPM - 115/208-230 V - ODP
1 1

US Motors / Nidec

4242 US Motors / Nidec Fan & Blower Motor - 1 1/2 HP - 1725 RPM - 115/208-230 V - ODP

4242 US Motors / Nidec Fan & Blower Motor - 1 1/2 HP - 1725 RPM - 115/208-230 V - ODP

$700.95 USD
$700.95 USD
Sale Sold out
Shipping calculated at checkout.

4242 is a new-in-box Fan & Blower Motor from US Motors / Nidec. Designed for belted fans and blowers.

Specifications

Horsepower 1 1/2 HP
Nominal RPM 1725 RPM
Rated RPM 1725 RPM
Voltage 115/208-230 V
Phase Single Phase
Frequency 60 Hz
Electrical Type Capacitor Start
Full-Load Amps 22.4/11.2 A
Service Factor 1.15
Overload Protection Automatic reset thermal overload protector
Duty Rating Continuous duty
Ambient Rating 40 °C
Speed Count 1
Frame 56
Enclosure ODP
Mounting Resilient base
Shaft Configuration Single shaft
Shaft Details N 1.9 in; diameter 0.625 in
Rotation Reversible
Bearings Ball
Material Rolled Steel
Motor Diameter 6.5 in
C Dimension 12.8 in
Length 12.8 in
Width 13 in
Height 12 in
Ship Weight 40.2 lb
Country of Origin MEX
View full details
