• 399 US Motors / Nidec Fan & Blower Motor - 2 HP - 3450 RPM - 115/208-230 V - ODP
1 1

US Motors / Nidec

399 US Motors / Nidec Fan & Blower Motor - 2 HP - 3450 RPM - 115/208-230 V - ODP

399 US Motors / Nidec Fan & Blower Motor - 2 HP - 3450 RPM - 115/208-230 V - ODP

$416.95 USD
$416.95 USD
Sale Sold out
Shipping calculated at checkout.

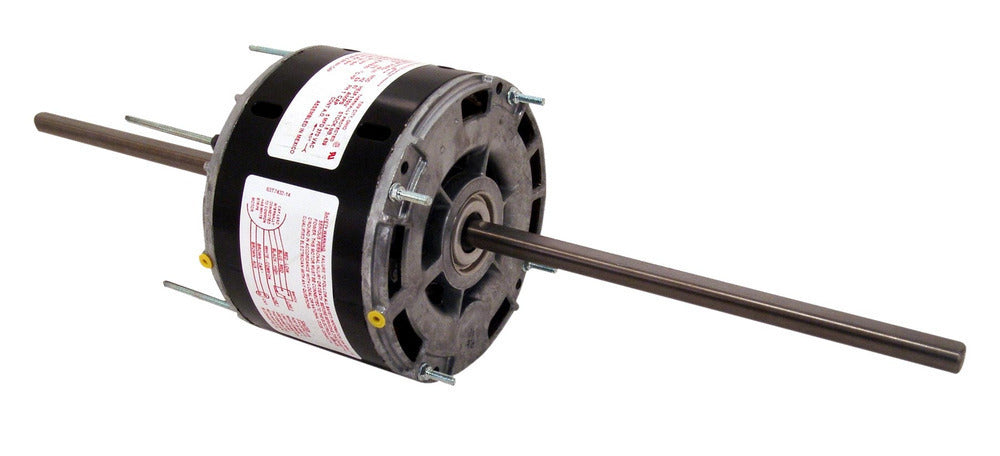

399 is a new-in-box Fan & Blower Motor from US Motors / Nidec. Designed for belted fans and blowers.

Specifications

Horsepower 2 HP
Nominal RPM 3450 RPM
Rated RPM 3450 RPM
Voltage 115/208-230 V
Phase Single Phase
Frequency 60 Hz
Electrical Type Capacitor Start Capacitor Run
Full-Load Amps 18.4/10.1-9.2 A
Service Factor 1.2
Overload Protection Automatic reset thermal overload protector
Duty Rating Continuous duty
Ambient Rating 40 °C
Speed Count 1
Frame 56
Enclosure ODP
Mounting Resilient base
Shaft Configuration Single shaft
Shaft Details N 1.9 in; diameter 0.625 in
Rotation Reversible
Bearings Ball
Material Rolled Steel
Motor Diameter 6.5 in
C Dimension 12.8 in
Length 12.8 in
Width 13 in
Height 13 in
Ship Weight 32 lb
Country of Origin MEX
