US Motors / Nidec

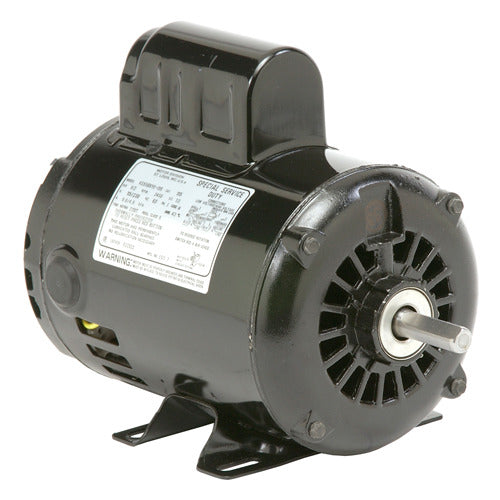

3768 US Motors / Nidec Air Compressor Motor - 2 HP - 3450 RPM - 115/230 V - ODP
3768 US Motors / Nidec Air Compressor Motor - 2 HP - 3450 RPM - 115/230 V - ODP
Regular price
$420.95 USD
Regular price
Sale price
$420.95 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
3768 is a new-in-box Air Compressor Motor from US Motors / Nidec. Designed for air compressors.
Specifications
| Horsepower | 2 HP |
|---|---|
| Nominal RPM | 3600 RPM |
| Rated RPM | 3450 RPM |
| Voltage | 115/230 V |
| Phase | Single Phase |
| Frequency | 60 Hz |
| Electrical Type | Capacitor Start Capacitor Run |
| Full-Load Amps | 15.0/7.5 A |
| Service Factor | 1 |
| Overload Protection | Manual Reset |
| Ambient Rating | 40 °C |
| Insulation Class | B |
| Speed Count | 1 |
| Frame | 56 |
| Enclosure | ODP |
| Mounting | Rigid Base |
| Shaft Details | Manufacturer shaft code Y |
| Rotation | CCW drive end |
| Bearings | BALL / BALL |
| Material | Rolled Steel |
| Motor Diameter | 6.5 in |
| Ship Weight | 28 lb |
| Country of Origin | MEX |
