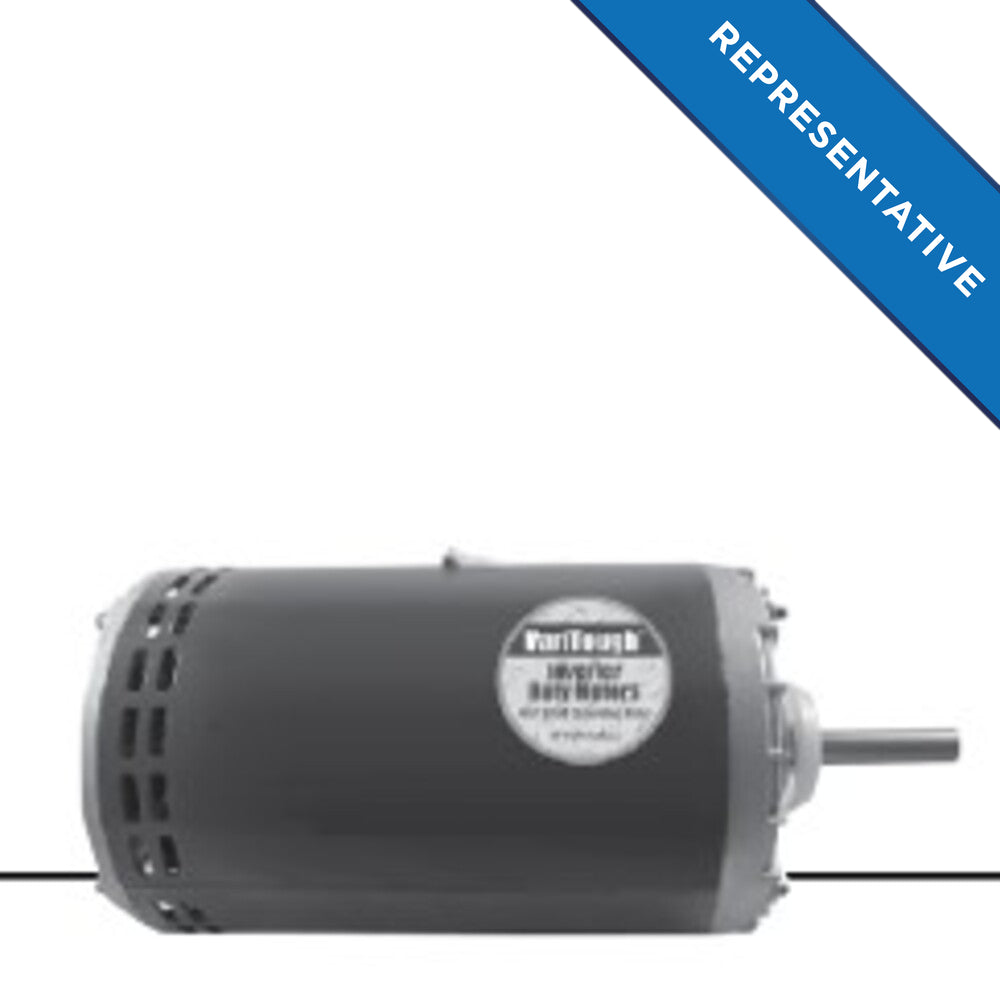

2166P US Motors / Nidec HVAC/R Motor, 1/6 HP, 1050 RPM, 115 V, 42 Frame, Open Air Over
2166P US Motors / Nidec HVAC/R Motor, 1/6 HP, 1050 RPM, 115 V, 42 Frame, Open Air Over
Regular price
$167.95 USD
Regular price
Sale price
$167.95 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
2166P is a new-in-box HVAC/R Motor from US Motors / Nidec. Designed for Direct-drive fans and blowers.
Specifications
| Manufacturer Part Number | 2166P |
|---|---|
| Product Type | HVAC/R Motor |
| Horsepower | 1/6 HP |
| Alternate Horsepower | 0.1 HP |
| Rated RPM | 1050 RPM |
| Voltage | 115 V |
| Secondary Voltage | 1 V |
| Frequency | 60 Hz |
| Electrical Type | PSC |
| Full Load Amps | 2.6 A |
| Service Factor | Automatic reset thermal overload protector |
| Duty Rating | Continuous duty, air over |
| Ambient | 1 °C |
| Frame | 42 |
| Enclosure | Open Air Over |
| Mounting | Stud or 2.5 in hub-ring mount |
| Shaft Configuration | Single shaft |
| Shaft Details | N 3.5 in |
| Rotation | CCWLE |
| Motor Diameter | 5 in |
| C Dimension | 8.2 in |
| Country of Origin | MEX |
Specifications reflect the exact manufacturer source verified for this product.
