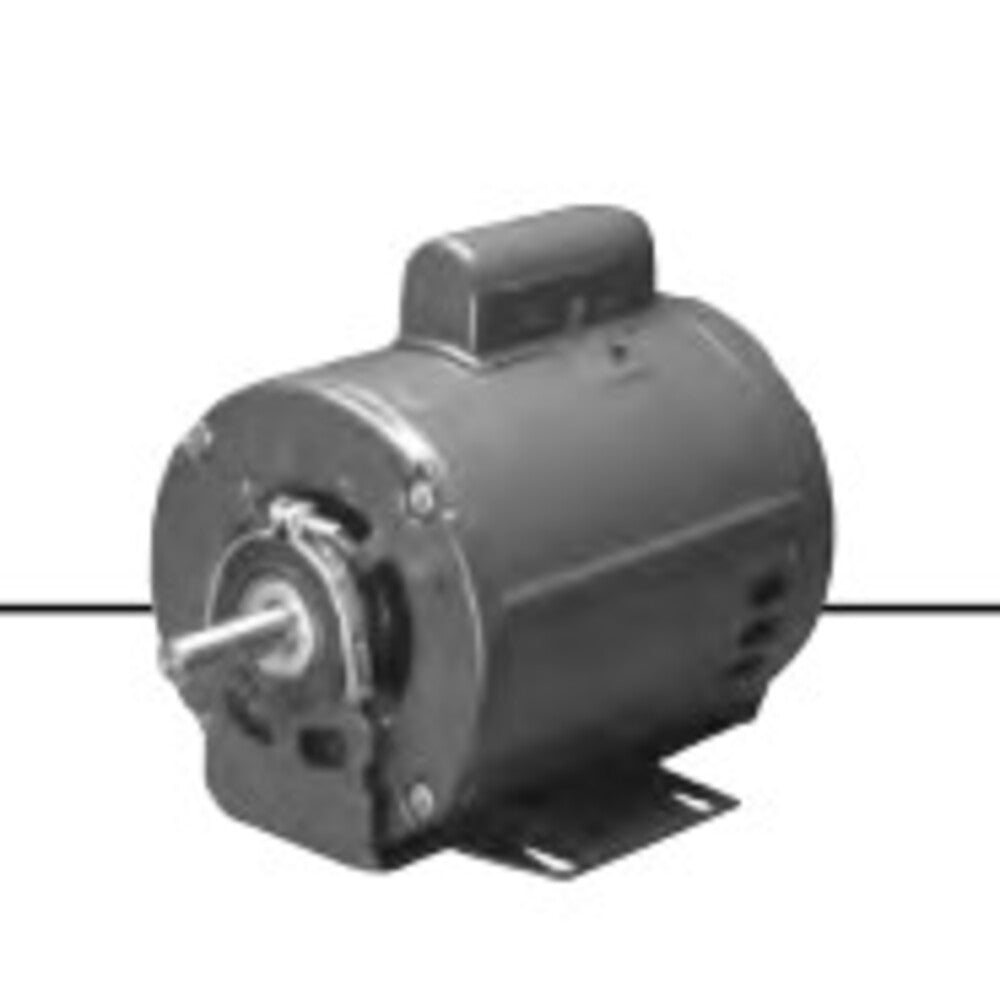

1893 US Motors / Nidec Fan & Blower Motor - 3/4 HP - 1725 RPM - 115/208-230 V - ODP
1893 US Motors / Nidec Fan & Blower Motor - 3/4 HP - 1725 RPM - 115/208-230 V - ODP
Regular price
$544.95 USD
Regular price
Sale price
$544.95 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
1893 is a new-in-box Fan & Blower Motor from US Motors / Nidec. Designed for belt-driven commercial and industrial fans and blowers.
Specifications
| Horsepower | 3/4 HP |
|---|---|
| Nominal RPM | 1800 RPM |
| Rated RPM | 1725 RPM |
| Voltage | 115/208-230 V |
| Phase | Single Phase |
| Frequency | 60 Hz |
| Electrical Type | Capacitor Start |
| Full-Load Amps | 11.4/5.7 A |
| Service Factor | 1.25 |
| Overload Protection | Automatic reset |
| Duty Rating | Not available from manufacturer |
| Ambient Rating | Not available from manufacturer |
| Insulation Class | A |
| Efficiency | Not available from manufacturer |
| Hazardous Location Rating | Not applicable |
| Speed Count | 1 |
| Frame | 56 |
| Enclosure | ODP |
| Mounting | Resilient base |
| Shaft Details | Manufacturer shaft configuration |
| Rotation | Reversible |
| Bearings | Ball bearings |
| Material | Rolled Steel |
| Motor Diameter | 6.5 in |
| Length | 18 in |
| Width | 13 in |
| Height | 11 in |
| Ship Weight | 27 lb |
| Country of Origin | MEX |
