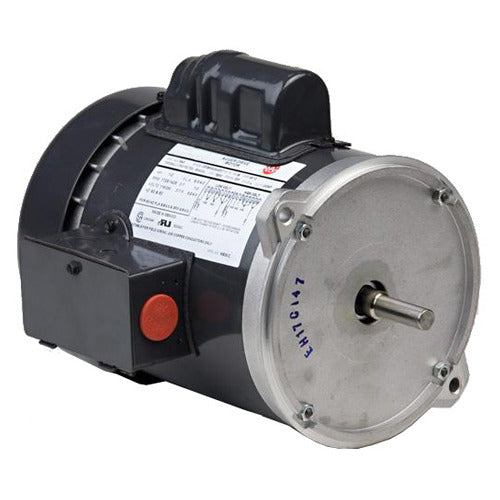

• 1843 US Motors / Nidec Auger Duty Motor - 1/2 HP - 1800 RPM - 115/230 V - TEFC
1 1

US Motors / Nidec

1843 US Motors / Nidec Auger Duty Motor - 1/2 HP - 1800 RPM - 115/230 V - TEFC

1843 US Motors / Nidec Auger Duty Motor - 1/2 HP - 1800 RPM - 115/230 V - TEFC

$319.95 USD
$319.95 USD
Sale Sold out
Shipping calculated at checkout.

1843 is a new-in-box Auger Duty Motor from US Motors / Nidec. Designed for agriculture augers.

Specifications

Horsepower 1/2 HP
Nominal RPM 1800 RPM
Rated RPM 1800 RPM
Voltage 115/230 V
Phase Single Phase
Frequency 50/60 Hz
Electrical Type Capacitor Start
Full-Load Amps 8.0/4.0 & 9.6/4.8 A
Service Factor 1
Overload Protection Manual reset thermal overload protector
Duty Rating Continuous duty
Insulation Class B
Speed Count 1
Frame 56YZ
Enclosure TEFC
Mounting Footless auger-duty mount
Shaft Configuration Flat auger shaft with opposite-drive-end hand-crank extension
Rotation Reversible
Bearings Ball bearings
Material Rolled Steel
Motor Diameter 6.5 in
C Dimension 11.6 in
Length 11.6 in
Ship Weight 29 lb
Country of Origin MEX
