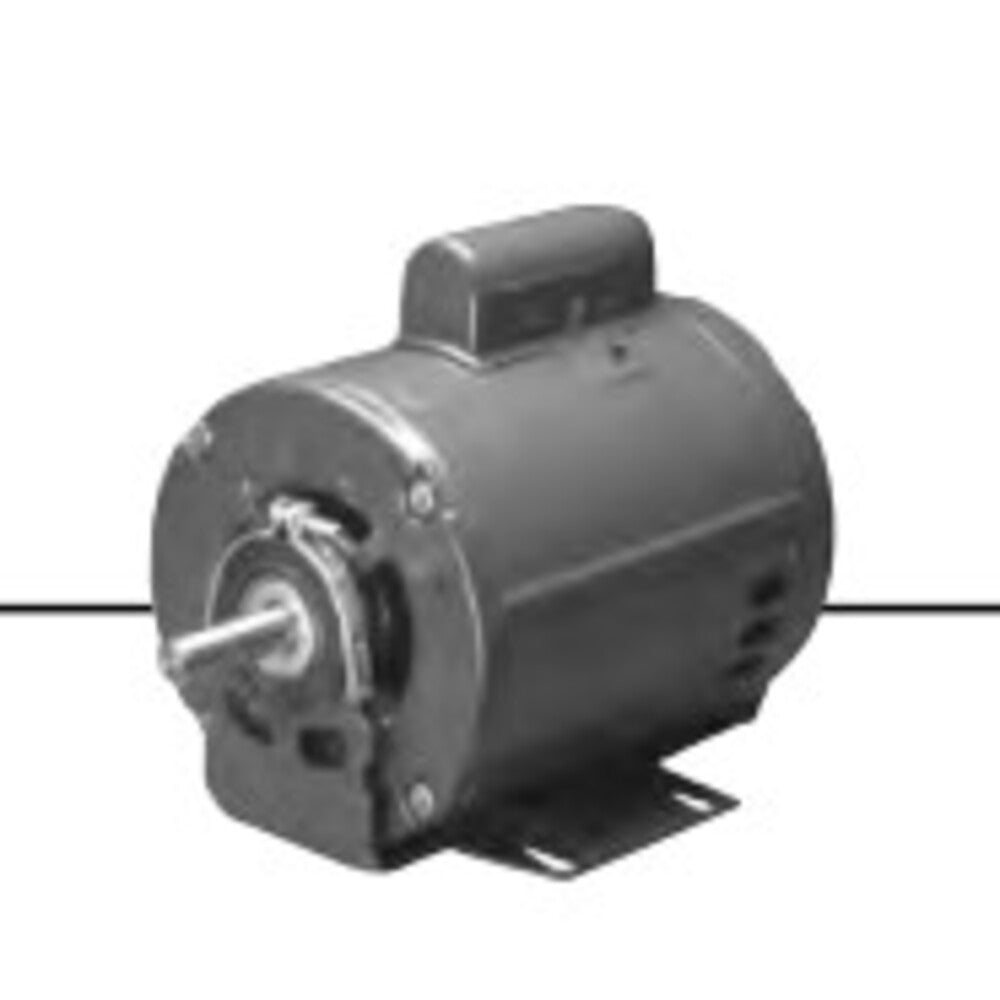

• 180 US Motors / Nidec Fan & Blower Motor - 1/3 HP - 1725 RPM - 115/230 V - ODP
1 1

US Motors / Nidec

180 US Motors / Nidec Fan & Blower Motor - 1/3 HP - 1725 RPM - 115/230 V - ODP

180 US Motors / Nidec Fan & Blower Motor - 1/3 HP - 1725 RPM - 115/230 V - ODP

$364.95 USD
$364.95 USD
Sale Sold out
Shipping calculated at checkout.

180 is a new-in-box Fan & Blower Motor from US Motors / Nidec. Designed for belted fans and blowers.

Specifications

Horsepower 1/3 HP
Nominal RPM 1725 RPM
Rated RPM 1725 RPM
Voltage 115/230 V
Phase Single Phase
Frequency 60 Hz
Electrical Type Capacitor Start
Full-Load Amps 6.0/3.0 A
Service Factor 1.35
Overload Protection Automatic reset thermal overload protector
Duty Rating Continuous duty
Ambient Rating 40 °C
Speed Count 1
Frame 48
Enclosure ODP
Mounting Resilient base
Shaft Configuration Single shaft
Shaft Details N 1.5 in; diameter 0.5 in
Rotation Reversible
Bearings Ball
Material Rolled Steel
Motor Diameter 5.6 in
C Dimension 9.9 in
Length 9.9 in
Ship Weight 18 lb
Country of Origin MEX
