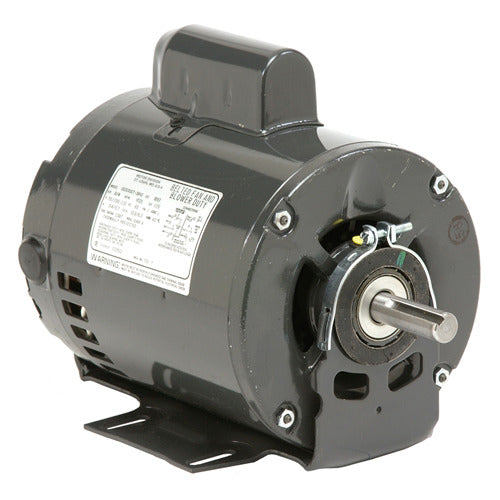

• 1790 US Motors / Nidec Fan & Blower Motor - 1/2 HP - 1725 RPM - 115/208-230 V - ODP
1 1

US Motors / Nidec

1790 US Motors / Nidec Fan & Blower Motor - 1/2 HP - 1725 RPM - 115/208-230 V - ODP

1790 US Motors / Nidec Fan & Blower Motor - 1/2 HP - 1725 RPM - 115/208-230 V - ODP

$463.95 USD
$463.95 USD
Sale Sold out
Shipping calculated at checkout.

1790 is a new-in-box Fan & Blower Motor from US Motors / Nidec. Designed for belted fans and blowers.

Specifications

Horsepower 1/2 HP
Nominal RPM 1725 RPM
Rated RPM 1725 RPM
Voltage 115/208-230 V
Phase Single Phase
Frequency 60 Hz
Electrical Type Capacitor Start
Full-Load Amps 9.2/4.6 A
Service Factor 1.25
Overload Protection Automatic reset thermal overload protector
Duty Rating Continuous duty
Ambient Rating 40 °C
Speed Count 1
Frame 56
Enclosure ODP
Mounting Resilient base
Shaft Configuration Single shaft
Shaft Details N 1.9 in; diameter 0.625 in
Rotation Reversible
Bearings Ball
Material Rolled Steel
Motor Diameter 6.5 in
C Dimension 9.3 in
Length 9.3 in
Width 12 in
Height 9 in
Ship Weight 22.8 lb
Country of Origin MEX
