US Motors / Nidec

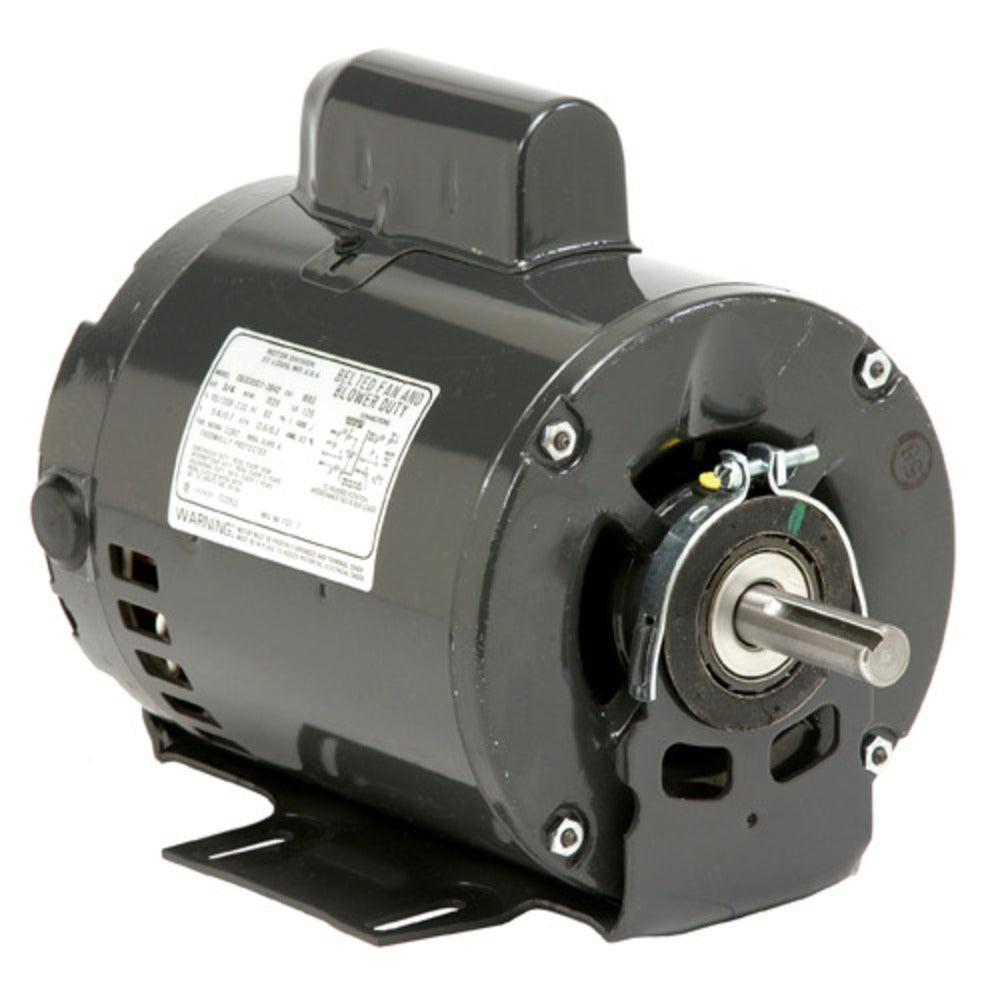

1660 US Motors / Nidec General Purpose Motor - 3/4 HP - 1725 RPM - 115/230 V - ODP
1660 US Motors / Nidec General Purpose Motor - 3/4 HP - 1725 RPM - 115/230 V - ODP
Regular price
$377.95 USD
Regular price
Sale price
$377.95 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
1660 is a new-in-box General Purpose Motor from US Motors / Nidec. Designed for fans, blowers, pumps, and general industrial equipment.
Specifications
| Horsepower | 3/4 HP |
|---|---|
| Nominal RPM | 1800 RPM |
| Rated RPM | 1725 RPM |
| Voltage | 115/230 V |
| Phase | Single Phase |
| Frequency | 60 Hz |
| Electrical Type | Capacitor Start |
| Full-Load Amps | 11.6/5.8 A |
| Service Factor | 1 |
| Overload Protection | Automatic reset |
| Duty Rating | Not listed by manufacturer |
| Ambient Rating | 40 °C |
| Insulation Class | B |
| Efficiency | Not listed by manufacturer % |
| Hazardous Location Rating | Not applicable |
| Speed Count | 1 |
| Frame | 56 |
| Enclosure | ODP |
| Mounting | Resilient mount |
| Shaft Configuration | Y |
| Shaft Details | Manufacturer shaft code Y |
| Rotation | CCW viewed from lead end; reversible |
| Bearings | 6203 ball bearings, both ends |
| Material | Rolled Steel |
| Motor Diameter | 6.5 in |
| Length | 17 in |
| Width | 13 in |
| Height | 10 in |
| Ship Weight | 28 lb |
| Country of Origin | MEX |
